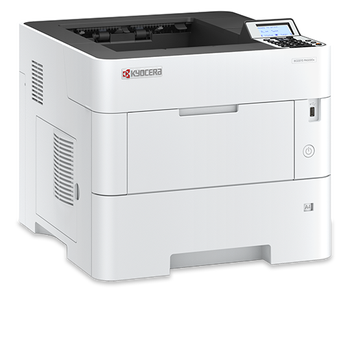

    square-540x540.ECOSYS-PA5000x

    ECOSYS PA5000x

    Top performance of ECOSYS PA5000x and embedded the data protection solutions meet the needs of every small and mid-sized workgroups. Up to 50 pages per minute in excellent 1,200 dpi resolution and fast time to first print of only 5.4 seconds boast productivity, while ECOSYS technology contributes to cost savings.

    • Data overwrite and encryption, Trusted Platform Module, Secure Boot and Run Time Integrity Check, S/MIME and TLS 1.3
    • Up to 6 ways of paper input for max. 2,600 sheet capacity
    • Strenghen affinity with Microsoft Universal Print
    • Optional SSD hard disk with Data Security Kit
    • Environmentally friendly: long-life components, low energy consumption
    Engine speed
    Engine speed

    Up to 50 pages A4 per minute. Duplex print speed: up to 35.5page per minute in A4.

    Resolution
    Resolution

    1200 x 1200 dpi

    Dimensions (W x D x H)
    Dimensions (W x D x H)

    (WxDxH) 380 mm × 416 mm × 320 mm, 390 mm × 416 mm × 343 mm incl. projections

    Warranty
    Warranty

    1-year warranty as standard **KYOCERA guarantees the drum and developer for 3 years or 500,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions. Up to 5-year on-site warranty extensions available for product and options.

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • man leaning back in his chair

      Multi-Functional Products for day-to-day tasks

      Highly regarded by the industry and highly rated by numerous testing organisations, KYOCERA boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant colour, to match the needs of any business.

      Multi-Functional Products for day-to-day tasks

      Multi-Functional Products for day-to-day tasks

      Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

    • woman smiling in meeting

      A4 printer for all needs

      KYOCERA’s A4 printers offer all the sophisticated paper finishing options that businesses require in a compact device that consumes fewer properties in manufacture, and gives rise to less waste to help make offices more efficient and more environmentally friendly at the same.

      A4 printer for all needs

      A4 printer for all needs

      High quality, high reliability and high efficiency are essential.

    • hands holding a plant in soil

      ECOSYS: The sustainable solution

      ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs and significantly less waste during their lifetime.

      ECOSYS: The sustainable solution

      ECOSYS: The sustainable solution

      Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.

    • ECOSYS PA5000x drivers
    • ECOSYS PA5000x documentation
    • ECOSYS PA5000x software

    Main Specifications

    General
    • General
    • Paper handling
    • Print
    square-540x540.ECOSYS-PA5000x
    General type
    Monochrome printer for A4 format
    Engine speed
    Up to 50 pages A4 per minute. Duplex print speed: up to 35.5page per minute in A4.
    Warm-up time
    Approx. 20 seconds or less from power on
    Power consumption
    Print - mode: 652 W, Sleep mode: 0.5 W, Ready - mode: 9 W
    Warranty
    1-year warranty as standard **KYOCERA guarantees the drum and developer for 3 years or 500,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions. Up to 5-year on-site warranty extensions available for product and options.
    Input capacity
    100-sheet multi-purpose tray: MP tray: 60 - 220g/m2, A4, A5, A6, B5, Letter, Legal, Custom (70 x 148 - 216 x 356 mm), Banner paper up to 915 mm 500-sheet universal paper cassette: 60 - 120g/m2, A4, A5, B5, Letter, Legal, Custom (140 x 210 - 216 x 356 mm)
    Max. input capacity with options
    2,600 sheets
    Duplex unit
    Duplex functionality as standard: Double sided printing: A4, A5, B5, Letter, Legal, Custom (140 x 210 mm - 216 x 356 mm), 60 - 120g/m2
    Max. output capacity
    500-sheet-face-down with paper full sensor and optional 250-sheet-face-up with PT-320
    Processor
    ARM Cortex-A53 Dual core 1.4GHz
    Fonts
    93 scalable fonts for PCL6/KPDL3, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)
    Features
    PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Encrypted PDF Direct Print
    Applicable OS
    All current Windows operating systems, Mac OS X Version 10.9 or higher, UNIX LINUX, as well as other operating systems on request

    Options and Consumables

    Paper handling Options
    • Paper handling Options
    • Options

    CA-3100
    Caster stand

    CB-365W-B
    Cabinet Low: White wooden desk with storage capacity. Approx. 38 cm x 41 cm x 25 cm (WxDxH)

    Card Authentication Kit (B)
    Support for various authentication keys available

    HD-17
    64 GB SSD hard disc for easy document management

    IB-32B
    Parallel IEEE1284 interface kit

    IB-50
    Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

    IB-51
    Wireless LAN Interface (802.11b/g/n)

    KYOCERA Life 3 years
    Warranty extension 3 years on-site

    KYOCERA Life 4 years
    Warranty extension 4 years on-site

    KYOCERA Life 5 years
    Warranty extension 5 years on-site

    KYOmulticode SD 3
    Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

    PCL Barcode SD
    Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

    UG-33
    ThinPrint support

    USB IC Card Reader + Card Authentication Kit (B)
    Support for various authentication keys available

    Our environmental policy

    The environment matters to Kyocera. We want to make the world a better place for the next generation.
    Read more Read more

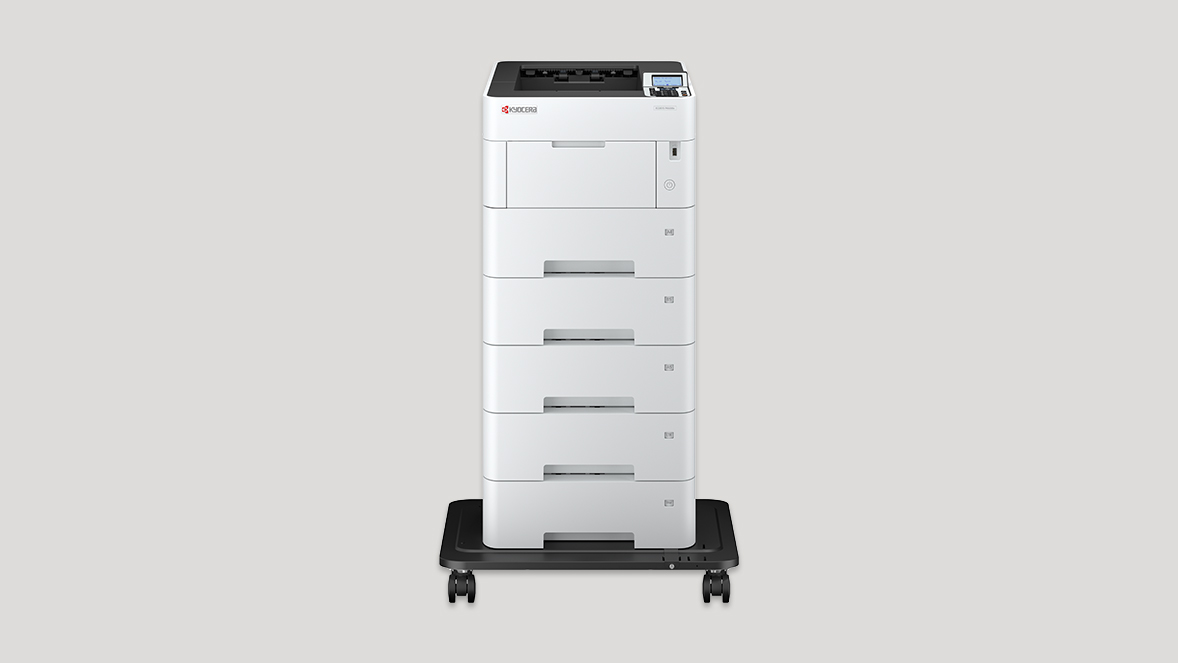

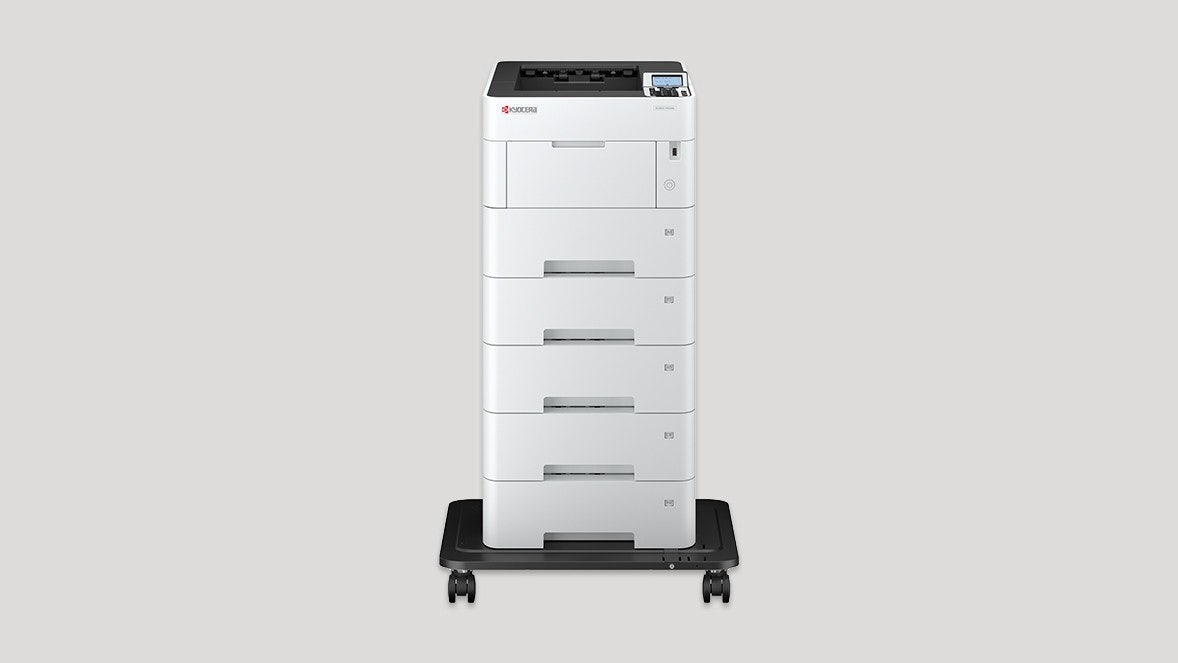

    • media-image-gallery-1178x663_MFP_PA5000x_front_comb03_01

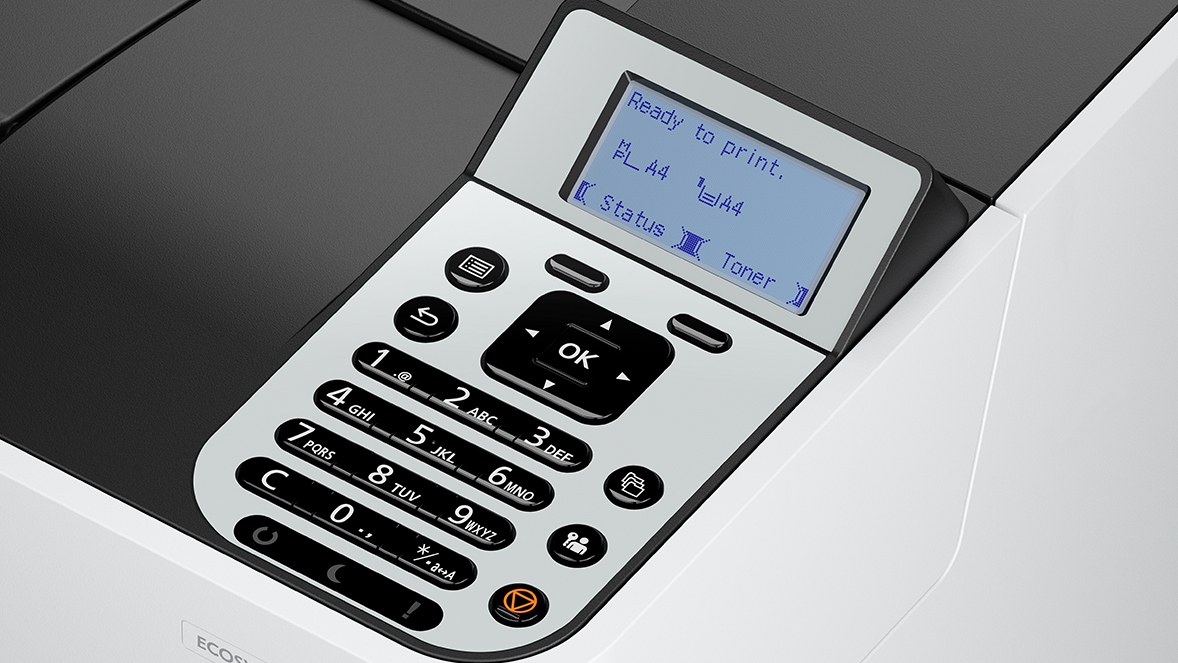

    • media-image-gallery-1178x663_MFP_PA5000x-Series_panel_close-up_01

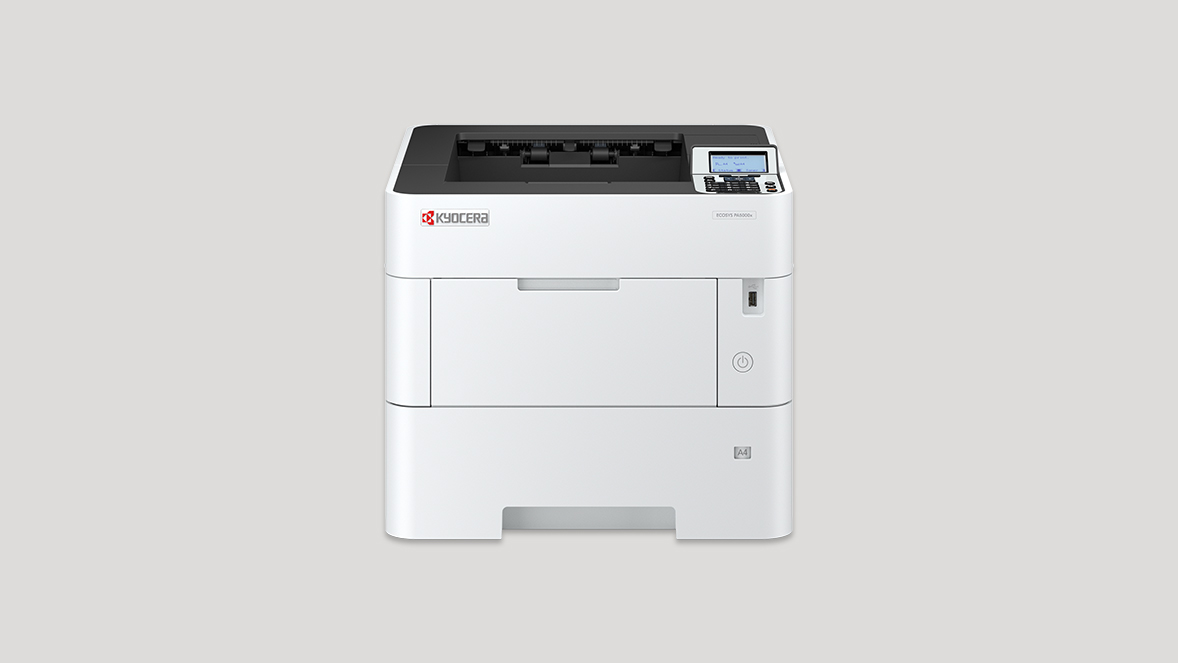

    • media-image-gallery-1178x663_MFP_PA5000x_front_comb01_01
